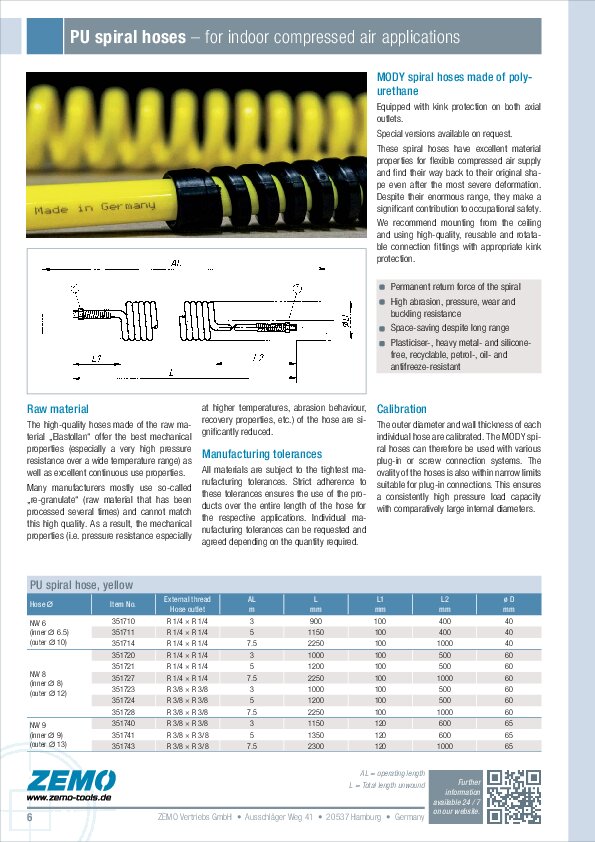

Compressed-air Spiral Hoses (MODY)

Made of polyurethane

Equipped with kink protection on both axial outlets. Special versions available on request. These spiral hoses have excellent material properties for flexible compressed air supply and return to their original shape even after the most severe deformation. Despite their enormous range, they make a significant contribution to occupational safety.

Raw material

The high-quality hoses made of the raw material "Elastollan" offer the best mechanical properties (especially a very high pressure resistance over a wide temperature range) as well as excellent long-term service properties. Many manufacturers cannot match this high quality, as they mostly use so-called "re-granulate" (raw material that has been processed several times). This significantly reduces the mechanical properties (i.e. pressure resistance especially at higher temperatures, abrasion behaviour, recovery properties, etc.) of the hose.

Manufacturing tolerances

All materials used are subject to the tightest manufacturing tolerances. Strict adherence to these tolerances ensures that the products can be used over the entire length of the hose for the respective applications. Individual manufacturing tolerances can be requested and agreed depending on the quantity required.

Calibration

The outer diameter and wall thickness of each individual hose are calibrated. The MODY spiral hoses can therefore be used with various plug-in or screw connection systems. The ovality of the hoses is also within narrow limits suitable for plug-in connections. This ensures a consistently high pressure load capacity with comparatively large internal diameters.

Features

Axial outlet on both sides
Permanent return force of the spiral
High resistance to abrasion, pressure, wear and kinking
Max. Operating pressure 10 bar
Resistant to plasticisers, heavy metals and silicone-free, recyclable, petrol, oil and antifreeze agents

We recommend mounting from the ceiling and using high-quality, reusable and rotatable connection fittings with appropriate kink protection.
