Allen Bits w 1/4 hex drive E 6.3

Tip hexagon acc. DIN/ISO 2963

1/4" hexagon drive DIN 3126 / ISO 1173 – E 6.3

Tough bits are ideal for hard applications where sudden increases in torque can lead to increased stresses in a bit. A hard tightening application is when screwing into metal.

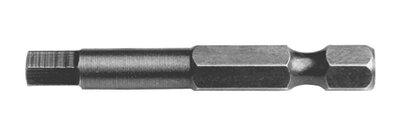

E 6.3 – Hex Driver – L50

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
A1-E6.3-50	115201	1	50	3	10
A1.5-E6.3-50	115202	1.5	50	3	10
A2-E6.3-50	115204	2	50	3	10
A2.5-E6.3-50	115210	2.5	50	3.5	10
A3-E6.3-50	115212	3	50	4	10
A4-E6.3-50	115214	4	50	5	10
A5-E6.3-50	115216	5	50	6	10
A5.5-E6.3-50	115231	5.5	50	6	10
A6-E6.3-50	115218	6	50	7	10
A7-E6.3-50	115235	7	50	8	10
A8-E6.3-50	115220	8	50	10	10
A10-E6.3-50	115222	10	50	12	10

E 6.3 – Hex Driver – L50 – inch

Model	Item No.	A/F [inch]	L [mm]	Ø [mm]	Pk
A1/16-E6.3-50	115250	1/16	50	3	10
A5/64-E6.3-50	115251	5/64	50	3	10
A3/32-E6.3-50	115252	3/32	50	3.5	10
A7/64-E6.3-50	115253	7/64	50	4	10
A1/8-E6.3-50	115254	1/8	50	4	10
A9/64-E6.3-50	115255	9/64	50	–	10
A5/32-E6.3-50	115256	5/32	50	5	10
A3/16-E6.3-50	115257	3/16	50	6	10
A7/32-E6.3-50	115258	7/32	50	–	10
A1/4-E6.3-50	115259	1/4	50	6.3	10

E 6.3 – Hex Driver – L50 – ZRN

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
A2-E6.3-50-ZRN	115260	2	50	3	10
A3-E6.3-50-ZRN	115261	3	50	4	10
A4-E6.3-50-ZRN	115262	4	50	5	10
A5-E6.3-50-ZRN	115263	5	50	6	10
A6-E6.3-50-ZRN	115264	6	50	7	10

E 6.3 – Hex Driver– L70

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
A1.5-E6.3-70	115203	1.5	70	3	10
A2-E6.3-70	115205	2	70	3	10
A2.5-E6.3-70	115211	2.5	70	3.5	10
A3-E6.3-70	115213	3	70	4	10
A4-E6.3-70	115215	4	70	5	10
A5-E6.3-70	115217	5	70	6	10
A6-E6.3-70	115219	6	70	7	10
A8-E6.3-70	115221	8	70	10	10

E 6.3 – Hex Driver – L90

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
A2-E6.3-90	115206	2	90	3	10
A2.5-E6.3-90	115223	2.5	90	3.5	10
A3-E6.3-90	115225	3	90	4	10
A4-E6.3-90	115227	4	90	5	10
A5-E6.3-90	115229	5	90	6	10
A6-E6.3-90	115233	6	90	7	10
A7-E6.3-90	115236	7	90	8	10
A8-E6.3-90	115237	8	90	10	10

E 6.3 – Hex Driver – L152

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
A2-E6.3-152	115207	2	152	3	10
A2.5-E6.3-152	115224	2.5	152	3.5	10
A3-E6.3-152	115226	3	152	4	10
A4-E6.3-152	115228	4	152	5	10
A5-E6.3-152	115230	5	152	6	10
A5.5-E6.3-152	115232	5.5	152	6	10
A6-E6.3-152	115234	6	152	7	10
A8-E6.3-152	115238	8	152	10	10

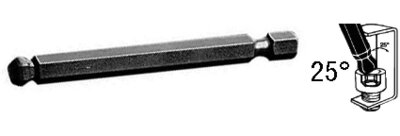

E 6.3 – Hex Ball – L50

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
AK2-E6.3-50	115520	2	50	3	10
AK2.5-E6.3-50	115521	2.5	50	3.5	10
AK3-E6.3-50	115522	3	50	4	10
AK4-E6.3-50	115523	4	50	5	10
AK5-E6.3-50	115524	5	50	6	10
AK6-E6.3-50	115525	6	50	7	10
AK7-E6.3-50	115526	7	50	8	10
AK8-E6.3-50	115527	8	50	10	10

E 6.3 – Hex Ball – L70

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
AK2-E6.3-70	115530	2	70	3	10
AK2.5-E6.3-70	115531	2.5	70	3.5	10
AK3-E6.3-70	115532	3	70	4	10
AK4-E6.3-70	115533	4	70	5	10
AK5-E6.3-70	115534	5	70	6	10
AK6-E6.3-70	115535	6	70	7	10
AK7-E6.3-70	115536	7	70	8	10
AK8-E6.3-70	115537	8	70	10	10

E 6.3 – Hex Ball – L76

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
AK2.0-E6.3-76	115510	2	76	–	10
AK2.5-E6.3-76	115511	2.5	76	–	10
AK3.0-E6.3-76	115512	3	76	–	10
AK4.0-E6.3-76	115513	4	76	–	10
AK5.0-E6.3-76	115514	5	76	–	10
AK6.0-E6.3-76	115515	6	76	–	10
AK8.0-E6.3-76	115516	8	76	–	10
AK10-E6.3-76	115517	10	76	–	10
AK12-E6.3-76	115518	12	76	–	10

E 6.3 – Hex Ball – L90

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
AK2-E6.3-90	115540	2	90	3	10
AK2.5-E6.3-90	115541	2.5	90	3.5	10
AK3-E6.3-90	115542	3	90	4	10
AK4-E6.3-90	115543	4	90	5	10
AK5-E6.3-90	115544	5	90	6	10
AK6-E6.3-90	115545	6	90	7	10
AK7-E6.3-90	115546	7	90	8	10
AK8-E6.3-90	115547	8	90	10	10

E 6.3 – Hex Ball – L152

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk
AK2-E6.3-152	115550	2	152	3	10
AK2.5-E6.3-152	115551	2.5	152	3.5	10
AK3-E6.3-152	115552	3	152	4	10
AK4-E6.3-152	115553	4	152	5	10
AK5-E6.3-152	115554	5	152	6	10
AK6-E6.3-152	115555	6	152	7	10
AK8-E6.3-152	115556	8	152	10	10

All specifications without guarantee, errors and omissions excepted.
