Allen Bits w 1/4 hex drive C 6.3

Tip hexagon acc. DIN/ISO 2963

1/4" hexagon drive DIN 3126 / ISO 1173 – C 6.3

Tough bits are ideal for hard applications where sudden increases in torque can lead to increased stresses in a bit. A hard screw case is when screwing into metal.

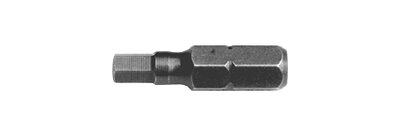

C6.3 (1/4) – Hex Driver – L18

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk [ea]
C6.3-A4-18	115001	4	18	–	10
C6.3-A5-18	115002	5	18	–	10
C6.3-A6-18	115003	6	18	–	10

C6.3 (1/4) – Hex Driver – L25

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk [ea]
C6.3-A1-25	115020	1	25	–	10
C6.3-A1.5-25	115010	1.5	25	–	10
C6.3-A2-25	115011	2	25	–	10
C6.3-A2.5-25	115012	2.5	25	–	10
C6.3-A3-25	115013	3	25	–	10
C6.3-A4-25	115014	4	25	–	10
C6.3-A5-25	115015	5	25	–	10
C6.3-A5.5-25	115021	5.5	25	–	10
C6.3-A6-25	115016	6	25	–	10
C6.3-A7-25	115019	7	25	–	10
C6.3-A8-25	115017	8	25	–	10
C6.3-A10-25	115018	10	25	–	10

C6.3 (1/4) – Hex Driver – L25 – CR

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk [ea]
C6.3-A2-25-CR	115070	2	25	–	10
C6.3-A2.5-25-CR	115071	2.5	25	–	10
C6.3-A3-25-CR	115072	3	25	–	10
C6.3-A4-25-CR	115073	4	25	–	10
C6.3-A5-25-CR	115074	5	25	–	10
C6.3-A6-25-CR	115075	6	25	–	10

C6.3 (1/4) – Hex Driver – L25 – inch

Model	Item No.	A/F [inch]	L [mm]	Ø [mm]	Pk [ea]
C6.3-A1/16-25	115030	1/16	25	–	10
C6.3-A5/64-25	115031	5/64	25	–	10
C6.3-A3/32-25	115032	3/32	25	–	10
C6.3-A7/64-25	115033	7/64	25	–	10
C6.3-A1/8-25	115034	1/8	25	–	10
C6.3-A9/64-25	115035	9/64	25	–	10
C6.3-A5/32-25	115036	5/32	25	–	10
C6.3-A3/16-25	115037	3/16	25	–	10
C6.3-A7/32-25	115038	7/32	25	–	10
C6.3-A1/4-25	115039	1/4	25	–	10

C6.3 (1/4) – Hex Driver – L25 – ZRN

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk [ea]
C6.3-A2-25-ZRN	115050	2	25	–	10
C6.3-A3-25-ZRN	115051	3	25	–	10
C6.3-A4-25-ZRN	115052	4	25	–	10
C6.3-A5-25-ZRN	115053	5	25	–	10
C6.3-A6-25-ZRN	115054	6	25	–	10

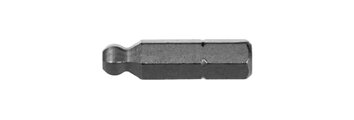

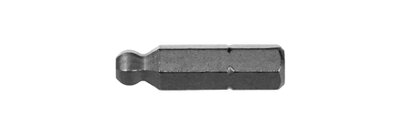

C6.3 (1/4) – Hex Ball Driver – L25

Model	Item No.	A/F [mm]	L [mm]	Ø [mm]	Pk [ea]
C6.3-AK2.5-25	115410	2.5	25	–	10
C6.3-AK3-25	115411	3	25	–	10
C6.3-AK4-25	115412	4	25	–	10
C6.3-AK5-25	115413	5	25	–	10
C6.3-AK6-25	115414	6	25	–	10

All specifications without guarantee, errors and omissions excepted.
