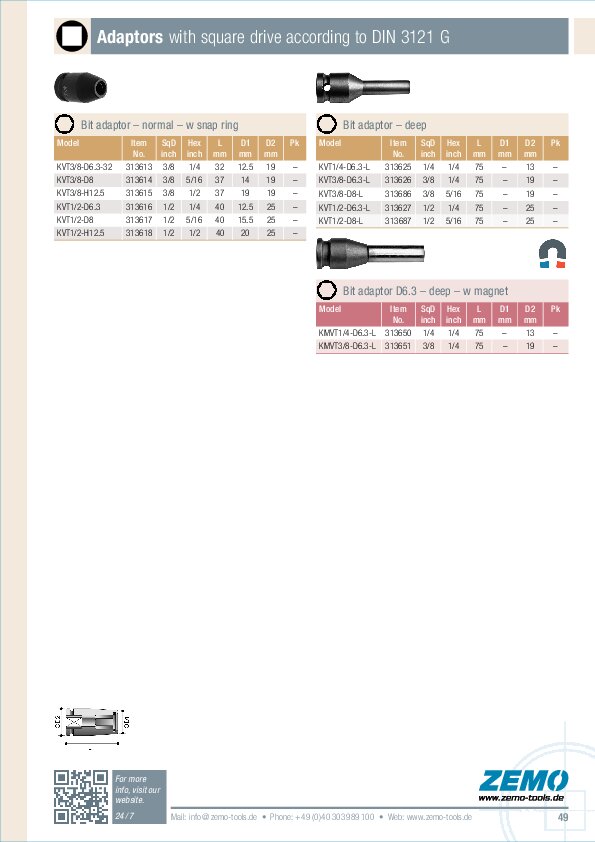

Adaptor w hex bit insert
square drive according to DIN 3121 G
Bit Adaptor – normal
| Model | Item No. | SqD [inch] | Hex [inch] | L [mm] | D2 [mm] | Pk |
|---|---|---|---|---|---|---|
| KVT3/8-D6.3-32 | 313613 | 3/8 | 1/4 | 32 | 19 | – |
| KVT3/8-D8 | 313614 | 3/8 | 5/16 | 37 | 19 | – |
| KVT3/8-H12.5 | 313615 | 3/8 | 1/2 | 37 | 19 | – |
| KVT1/2-D6.3 | 313616 | 1/2 | 1/4 | 40 | 25 | – |
| KVT1/2-D8 | 313617 | 1/2 | 5/16 | 40 | 25 | – |
| KVT1/2-H12.5 | 313618 | 1/2 | 1/2 | 40 | 25 | – |
Bit Adaptor – deep
| Model | Item No. | SqD [inch] | Hex [inch] | L [mm] | D2 [mm] | Pk |
|---|---|---|---|---|---|---|
| KVT1/4-D6.3-L | 313625 | 1/4 | 1/4 | 75 | 13 | – |
| KVT3/8-D6.3-L | 313626 | 3/8 | 1/4 | 75 | 19 | – |
| KVT3/8-D8-L | 313686 | 3/8 | 5/16 | 75 | 19 | |
| KVT1/2-D6.3-L | 313627 | 1/2 | 1/4 | 75 | 25 | – |
| KVT1/2-D8-L | 313687 | 1/2 | 5/16 | 75 | 25 |
All specifications without guarantee, errors and omissions excepted.
