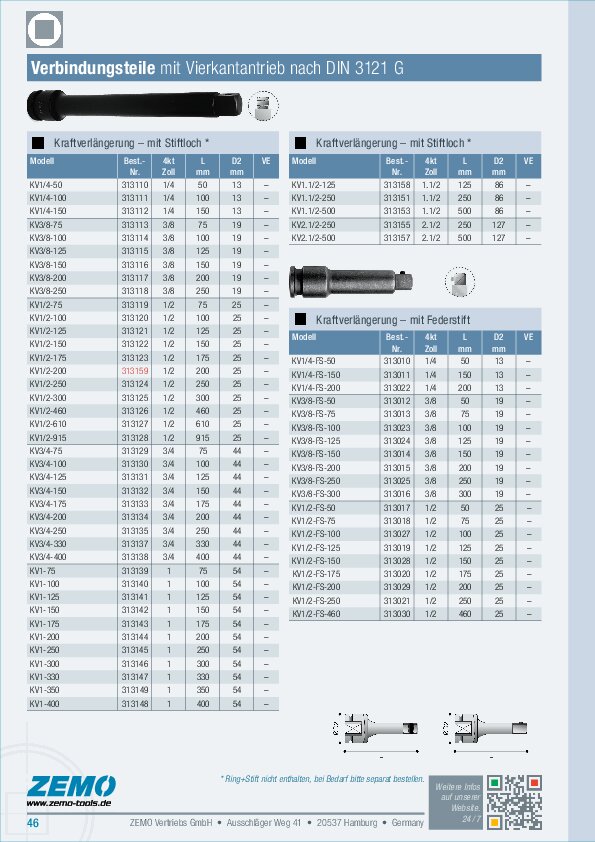

Kraftsteck-Verlängerung mit Stiftloch
Vierkantantrieb/-abtrieb nach DIN 3121 G
KV – mit Stiftloch
| Modell | Art.-Nr. | 4kt [Zoll] | L [mm] | D2 [mm] | VE [Stk] |
|---|---|---|---|---|---|
| KV1/4-50 | 313110 | 1/4 | 50 | 13 | – |
| KV1/4-100 | 313111 | 1/4 | 100 | 13 | – |
| KV1/4-150 | 313112 | 1/4 | 150 | 13 | – |
| KV3/8-75 | 313113 | 3/8 | 75 | 19 | – |
| KV3/8-100 | 313114 | 3/8 | 100 | 19 | – |
| KV3/8-125 | 313115 | 3/8 | 125 | 19 | – |
| KV3/8-150 | 313116 | 3/8 | 150 | 19 | – |
| KV3/8-200 | 313117 | 3/8 | 200 | 19 | – |
| KV3/8-250 | 313118 | 3/8 | 250 | 19 | – |
| KV1/2-75 | 313119 | 1/2 | 75 | 25 | – |
| KV1/2-100 | 313120 | 1/2 | 100 | 25 | – |
| KV1/2-125 | 313121 | 1/2 | 125 | 25 | – |
| KV1/2-150 | 313122 | 1/2 | 150 | 25 | – |
| KV1/2-175 | 313123 | 1/2 | 175 | 25 | – |
| KV1/2-250 | 313124 | 1/2 | 250 | 25 | – |
| KV1/2-300 | 313125 | 1/2 | 300 | 25 | – |
| KV1/2-460 | 313126 | 1/2 | 460 | 25 | – |
| KV1/2-610 | 313127 | 1/2 | 610 | 25 | – |
| KV1/2-915 | 313128 | 1/2 | 915 | 25 | – |
| KV3/4-75 | 313129 | 3/4 | 75 | 44 | – |
| KV3/4-100 | 313130 | 3/4 | 100 | 44 | – |
| KV3/4-125 | 313131 | 3/4 | 125 | 44 | – |
| KV3/4-150 | 313132 | 3/4 | 150 | 44 | – |
| KV3/4-175 | 313133 | 3/4 | 175 | 44 | – |
| KV3/4-200 | 313134 | 3/4 | 200 | 44 | – |
| KV3/4-250 | 313135 | 3/4 | 250 | 44 | – |
| KV3/4-330 | 313137 | 3/4 | 330 | 44 | – |
| KV3/4-400 | 313138 | 3/4 | 400 | 44 | – |
| KV1-75 | 313139 | 1 | 75 | 54 | – |
| KV1-100 | 313140 | 1 | 100 | 54 | – |
| KV1-125 | 313141 | 1 | 125 | 54 | – |
| KV1-150 | 313142 | 1 | 150 | 54 | – |
| KV1-175 | 313143 | 1 | 175 | 54 | – |
| KV1-200 | 313144 | 1 | 200 | 54 | – |
| KV1-250 | 313145 | 1 | 250 | 54 | – |
| KV1-300 | 313146 | 1 | 300 | 54 | – |
| KV1-330 | 313147 | 1 | 330 | 54 | – |
| KV1-350 | 313149 | 1 | 350 | 54 | – |
| KV1-400 | 313148 | 1 | 400 | 54 | – |
| KV1.1/2-125 | 313158 | 1.1/2 | 125 | 86 | – |
| KV1.1/2-175 | 313150 | 1.1/2 | 175 | 86 | – |
| KV1.1/2-250 | 313151 | 1.1/2 | 250 | 86 | – |
| KV1.1/2-500 | 313153 | 1.1/2 | 500 | 86 | – |
| KV2.1/2-250 | 313155 | 2.1/2 | 250 | 127 | – |
| KV2.1/2-500 | 313157 | 2.1/2 | 500 | 127 | – |
Ring+Stift nicht enthalten, bitte ggf. zusätzlich bestellen. Alle Angaben ohne Gewähr, technische Änderungen oder Irrtümer vorbehalten.
